Description
Force® Pro Trolling Motor with Built-In GT56UHD-TR Transducer
Move fast, move quiet with the Force Pro trolling motor — engineered with a powerful motor and our most precise positioning technology.
The Garmin Force Pro Trolling Motor is the latest innovation in marine technology, offering unparalleled power, efficiency, and integration for both freshwater and saltwater anglers. Designed to enhance your fishing experience, the Force Pro combines advanced features with user-friendly operation.
With the Garmin Force Pro Trolling Motor, anglers can expect a powerful, efficient, and intuitive system that enhances their time on the water, providing a significant advantage in any fishing scenario.
Included: Force® Pro Trolling Motor, High efficiency propeller, Weedless propeller, Foot pedal, Remote, Stabilizer, Assembly and mounting hardware, Documentation
Garmin Force Pro Specs
| ✔ | Electric Steering |
| ✔ | Built-in Heading Sensor |

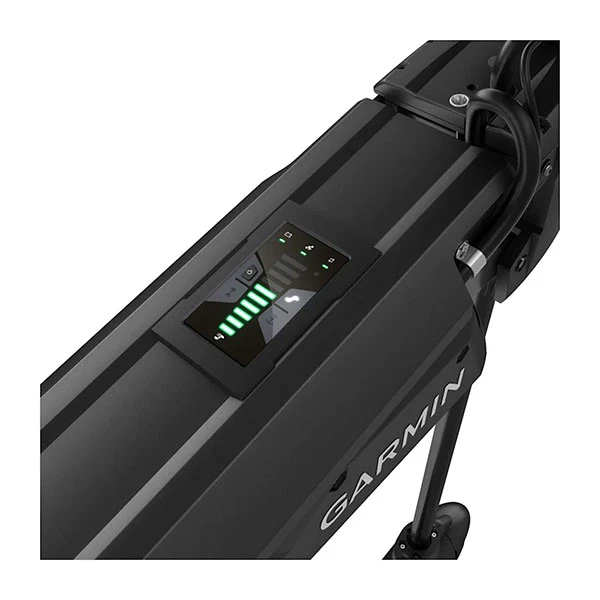

| ✔ | Battery Indicator |
| ✔ | Wireless Remote |
| ✔ | Lighted Direction Indicator |
| ✔ | Route Following |
| ✔ | Anchor Lock |
| ✔ | Smart Anchor Lock Features |
| ✔ | Anchor Lock Jog |
| ✔ | Heading Hold |
| ✔ | Cruise Control |
| ✔ | Gesture Features |
| ✔ | Wireless Communication |
| ✔ | Adjustable Pedal Resistance |
| ✔ | Chartplotter User Programmable Keys |
| ✔ | Autopilot Feature Control |
| ✔ | Floats |
- Shaft length: 50″/57″
- For use in: freshwater, brackish water and saltwater
- Mounting Location: Bow
- Mount style: Scissor style mount
- Max thrust: 100 lbs per ISO 13342 using high efficiency propeller at 36 V, 80 lbs per ISO 13342 using high efficiency propeller at 24 V
- Voltage: 24 V or 36 V
- Lift-assist: Dual Gas Springs
- Built in GPS: Yes (Dual Frequency GPS)
- Water rating (components above water): IPX7
- Frequencies supported: Traditional: High-wide CHIRP (150-240 kHz), ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
- Transmit power: Traditional: 350 W, ClearVü/SideVü: 500 W
- Maximum depth: CHIRP sonar: 800′ freshwater, ClearVü: 400′, SideVü: 500′
- Number of pins: 12-pin (orange connector)
- Foot Pedal Dimensions: 12″ L x 9″ W x 4 1/2″ H
- Power installation: 12 V/24 V/36 V wired or battery powered (2 AA)
- Remote Display size: 1.2″ (30.2 mm) diameter
- Remote Display resolution: 240 x 240 pixels
- Remote Display type: Color, sunlight-visible, transflective memory-in-pixel (MIP)
- Remote Battery life: Typical use with backlight at low, 43 weeks
Trolling Motor Features
High-Powered

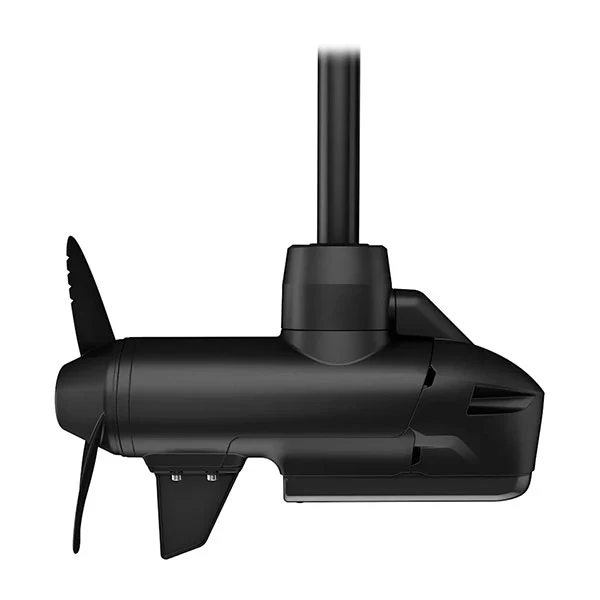

The brushless motor on Force Pro provides legendary power and performance, as well as premium efficiency, with 100 lbs of thrust.
Stay Put
The anchor lock feature provides our most precise boat positioning technology with new multi-band GPS, plus reverse prop spin and calm-water cable unwrap help reduce motor activity.
Floating Remote
Use the included remote to help you navigate from anywhere in the boat with our simple point-and-go technology.
Smart Watch Integration
Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
Wireless Control
Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control.
Perfect for Bass Boats

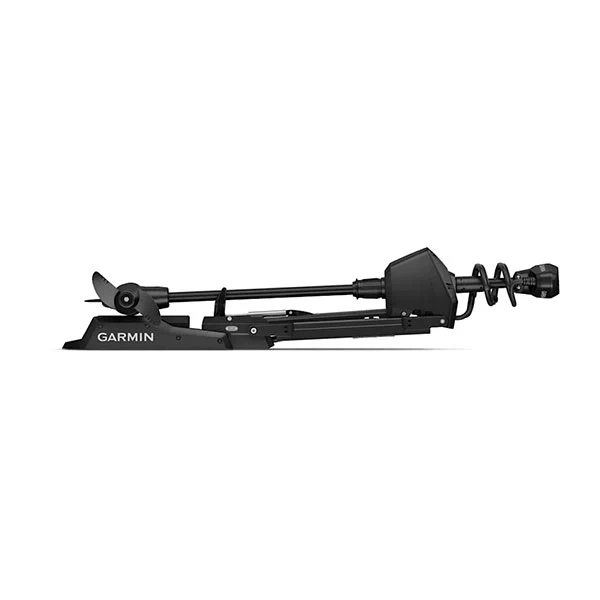

Deploy and stow the motor with ease, thanks to dual gas springs and a durable pull cable. The 50-inch and 57-inch shaft lengths accommodate different boat sizes and deck configurations. And the included weedless and high-efficiency propellers can be easily swapped as needed.

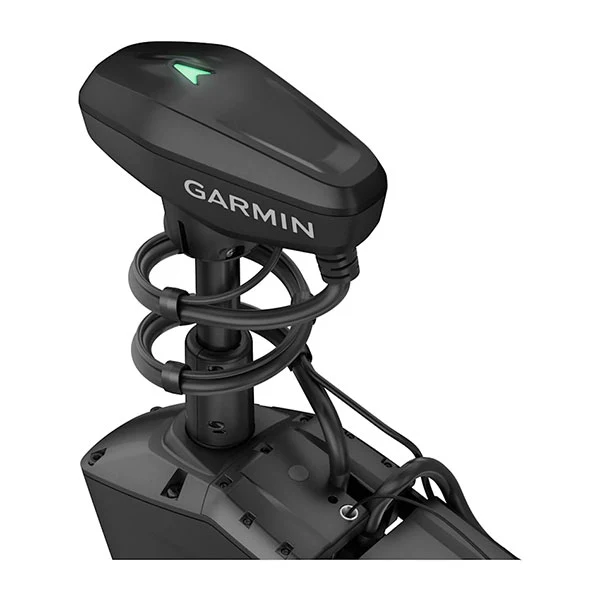

Lighted Indicator
Fish in low light, and always know what direction you’re headed with the lighted indicator on the trolling motor shaft cap.
Built-In Sonar
This trolling motor includes the improved all-in-one GT56UHD-TR transducer, so you can see everything around your boat with brilliant high-definition scanning sonar and extremely low levels of sonar noise.
Chartplotter Integration
Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.
Your Satisfaction with Garmin is Guaranteed:
- 3-Year Limited Warranty
- Free Shipping & Lowest Price Guaranteed
